CAPTURE X
RADAR OPENING SENSOR FOR INDUSTRIAL DOORS WITH 60GHz RADAR TECHNOLOGY
- Robust
- Reliable
- Easy to install
- Mounting from 2m to 10m high

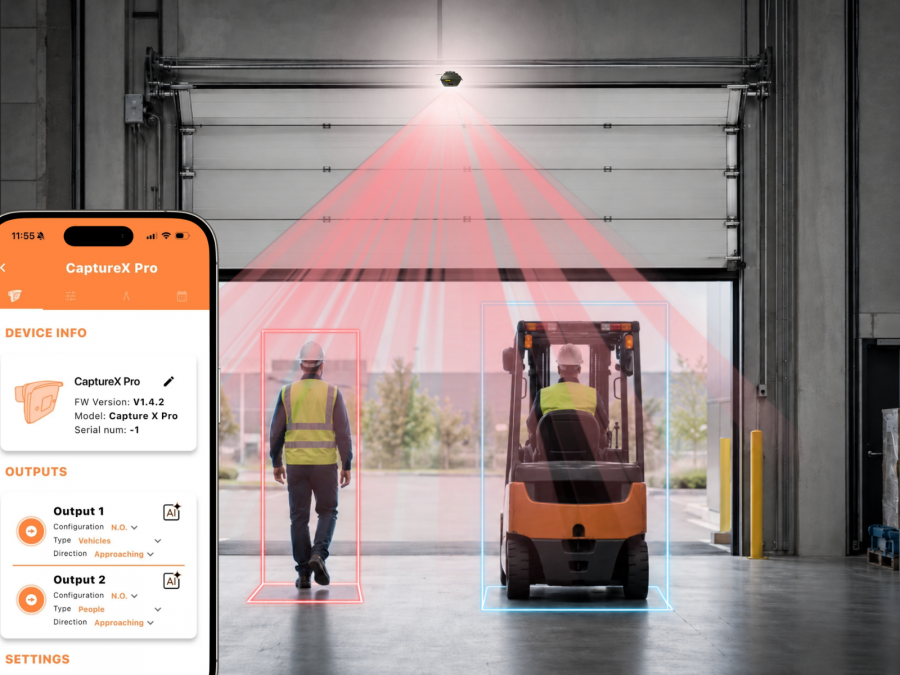

- Optimum recognition of people even at 10m
- Discrimination between vehicles and persons
- Parallel traffic filter
Can be installed on:
- Sectional doors
- Sliding doors
- Fridge doors
- High-speed doors
- Packaging doors
- Folding doors
60GHz radar technology
60 GHz radars represent a significant evolution from the previous 24 GHz technology, offering a number of crucial advantages in terms of performance and functionality. The higher operating frequency of 60 GHz allows for greater angular resolution and distance, due to the shorter wavelength that allows radar energy to be concentrated in narrower beams. This results in greater accuracy in target location and discrimination between nearby objects, while reducing interference and background noise. In addition, the 60 GHz frequency offers greater bandwidth than 24 GHz, enabling faster data transmission and greater information processing capacity. The higher bandwidth enables better discrimination of targets, improving measurement accuracy and reducing the risk of false alarms.
.jpg)

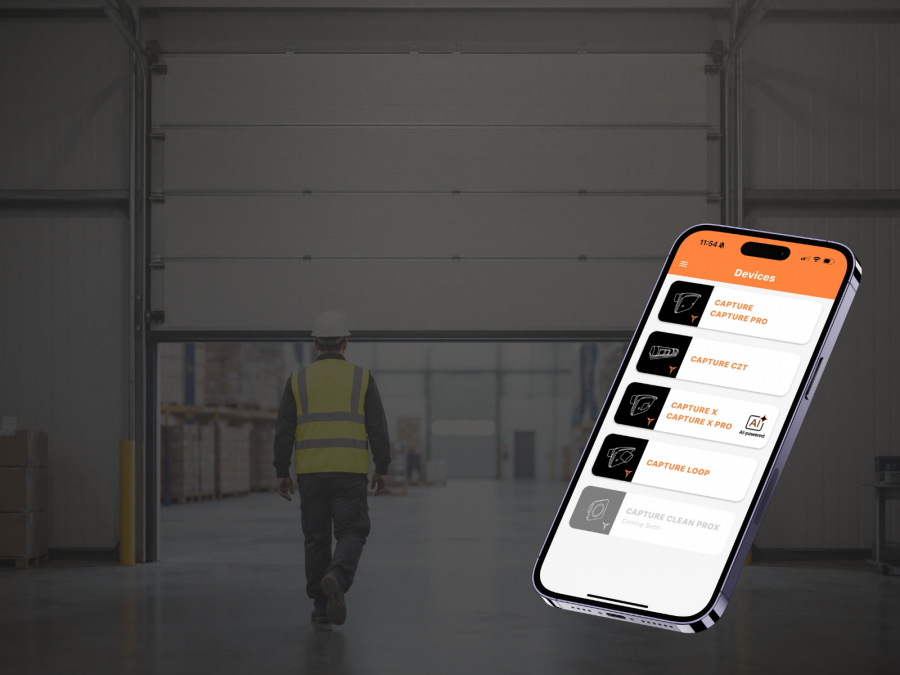

Configuration via App, OLED display and buttons

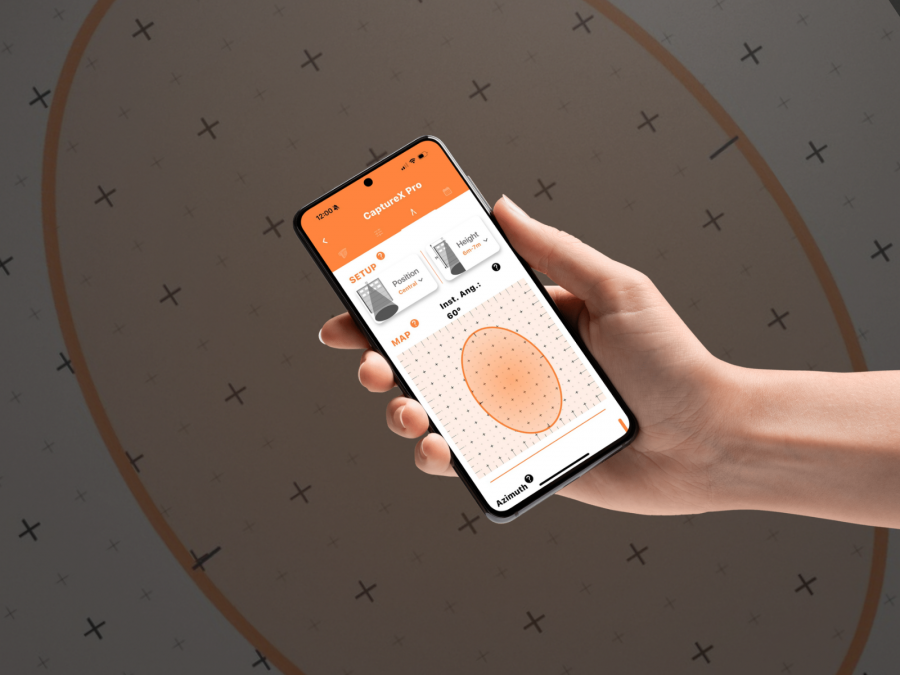

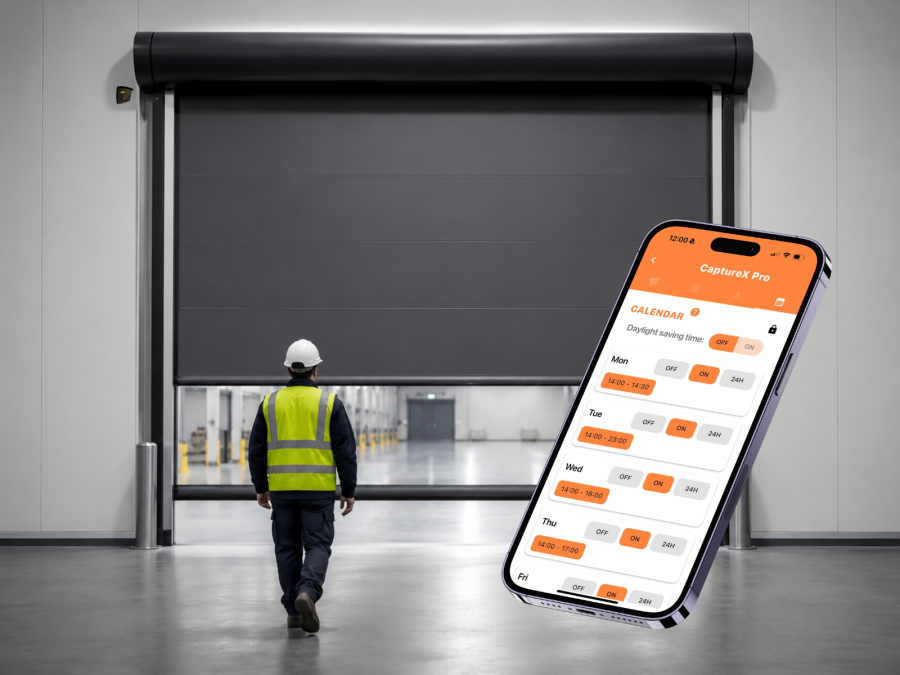

The sensor is designed to be configured through two main methods: using a dedicated mobile application or via the local interface consisting of buttons and an integrated OLED display. The mobile application, equipped with an advanced user interface, allows for detailed customization of the sensor settings, including parameters such as detection sensitivity, coverage area, and criteria for classifying monitored subjects, according to the user's specific needs. Additionally, the app provides real-time monitoring of the activities detected by the sensor, enabling complete control and efficient management directly from a smartphone or tablet. Configuration through the integrated OLED display and buttons allows access to all main settings without the need for external devices, facilitating direct interaction with the sensor.

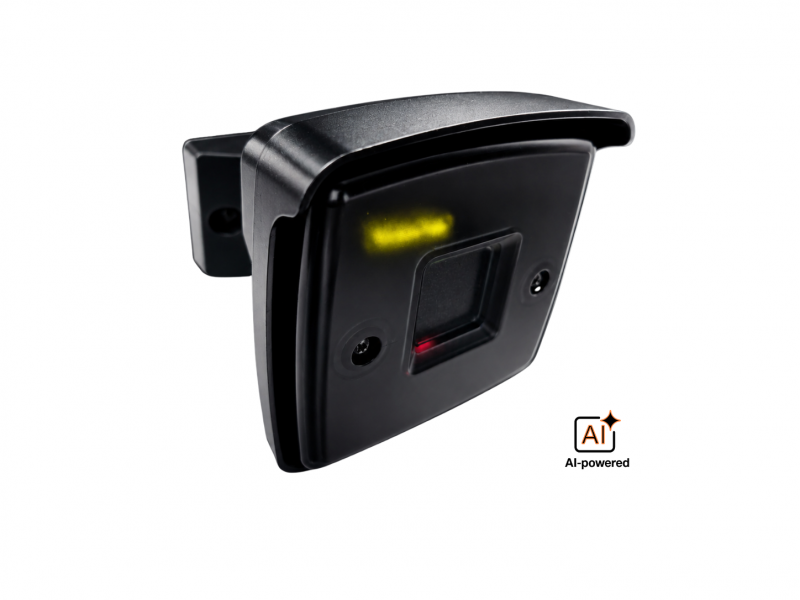

Gimbal fastening system
- Precise Angular Adjustment: It allows the sensor to be oriented exactly in the desired direction, ensuring optimal coverage of the monitored area and improving detection effectiveness.
- Mounting Flexibility: It enables the sensor to be installed on various surfaces, whether inclined or irregular, while maintaining a stable and correct position.
- Stability and Durability: It provides greater stability to the sensor, reducing the risk of misalignment caused by vibrations or accidental movements, thereby ensuring consistent and reliable performance over time.
- Easy Installation: It simplifies the installation process, allowing the sensor to be adjusted and secured with precision, reducing the time and effort needed to achieve the ideal positioning.
- The gimbal system also contributes to easier maintenance, as it allows for easy adjustment of the sensor even after installation, without the need for disassembly or reinstallation, making it a practical and versatile solution for a wide range of applications.
Technical Specifications
- Supply voltage: 12V or 24V AC/DC
- Technology: Microwave Doppler radar
- Emitted frequencies: 60GHz
- Emitted power: < 20 dBm EIRP
- Emitted power density: < 5 mW/cm2
- Detection mode: Motion
- Maximum detection field: 34° x 80°
- Minimum detection speed: 5 cm/s**
- Power supply frequency: 50Hz - 60Hz
- Power consumption: < 1 W
- Outputs: 2 outputs: NO/NC configuration (normally open/closed)
- Max. load voltage: 60V AC/DC; Max. load current: 500 mA
- Installation height: 2-10 m
- Cable length: 10m
- Degree of protection: IP65
- Temperature range: -30 °C to + 60 °C
- Angle of inclination: 0° to 45° vertically; +30°, +15°, 0°, -15° -30° horizontally
- Material: ASA + Polycarbonate
- Weight: 400 g
- Standards compliance: EN 300 440-2 V1.4.1; EN 301 489-1 v1.9.2; EN 301 489-3 V1.6.1; EN62311; EN62479
