CAPTURE LOOP
CAPTURE LOOP
INDUSTRIAL RADAR ALTERNATIVE TO MAGNETIC LOOP FOR OPENING WITH THE PRESENCE OF VEHICLES
Easy set-up performed via dedicated smartphone app and indication via radar angle coverage diagram
Oled on board for set-up (as an alternative to the app)
Scheduling that allows you to plan work cycles in order to manage certain behaviors based on time (on board the buffer battery card for memory maintenance)

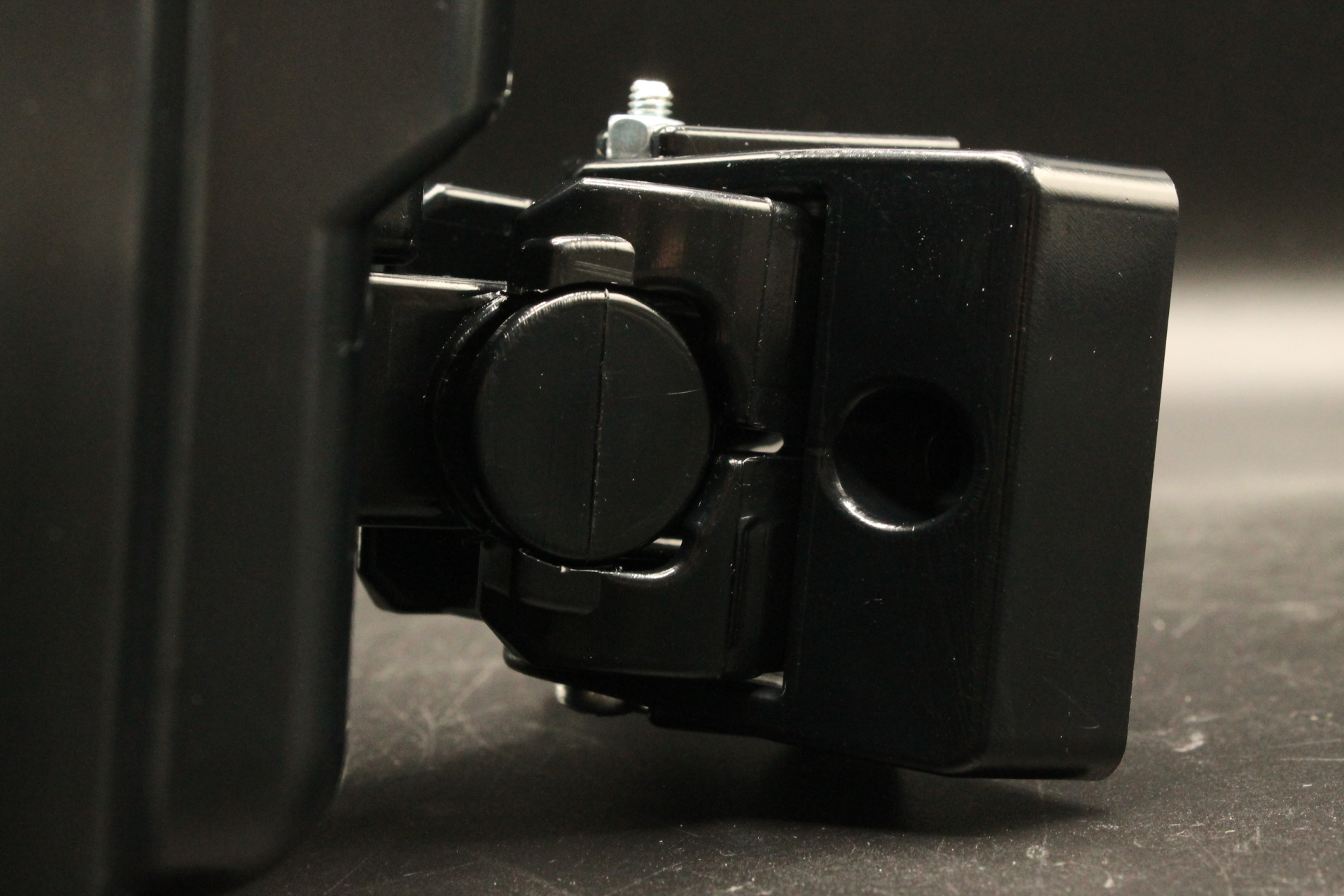

Extremely robust cardan fixing system, which allows adjustments on both vertical and horizontal axes
Magnetic loop function: The radar will be used instead of a magnetic loop to detect the presence (arrival) of vehicles. In addition.
Technical features
- Supply voltage: 12V/24V AC/DC insert a 1A fuse on external power supply
- Technology: Microwave doppler radar + Ultrasonic Module
- Transmission frequency: 24,150 GHz
- Transmitter radiated power: < 20 dBm EIRP
- Transmitter power density: < 5 mW/cm2
- Detection mode: Motion + Vehicle presence
- Detection zone: Radar: 10m ; Ultrasonic: 7,65m Ultrasonic
- Field of View area: 60 cm² at 7 m. distance
- Minimum detection speed: 3-4 Km/h
- Vehicle speed: 3 to 50 Km/h
- Mains frequency: 50 - 60 Hz
- Max power consumption: < 2 W
- Outputs: 1 output: NO/NC configuration (Normally open/closed) 1 input: wake/ inhibit Max. load voltage: 42V peak or DC; Max. load current: 500 mA
- Mounting height: 1 m to 2 m (recommended 1,5 m)
- Protection class: IP65
- Temperature range: -30 °C to +60 °C
- Inclination angles: +/- 45°
- Materials: ADA + Polycarbonate
- Weight: 637g with cable
- Cable length: 10 m
