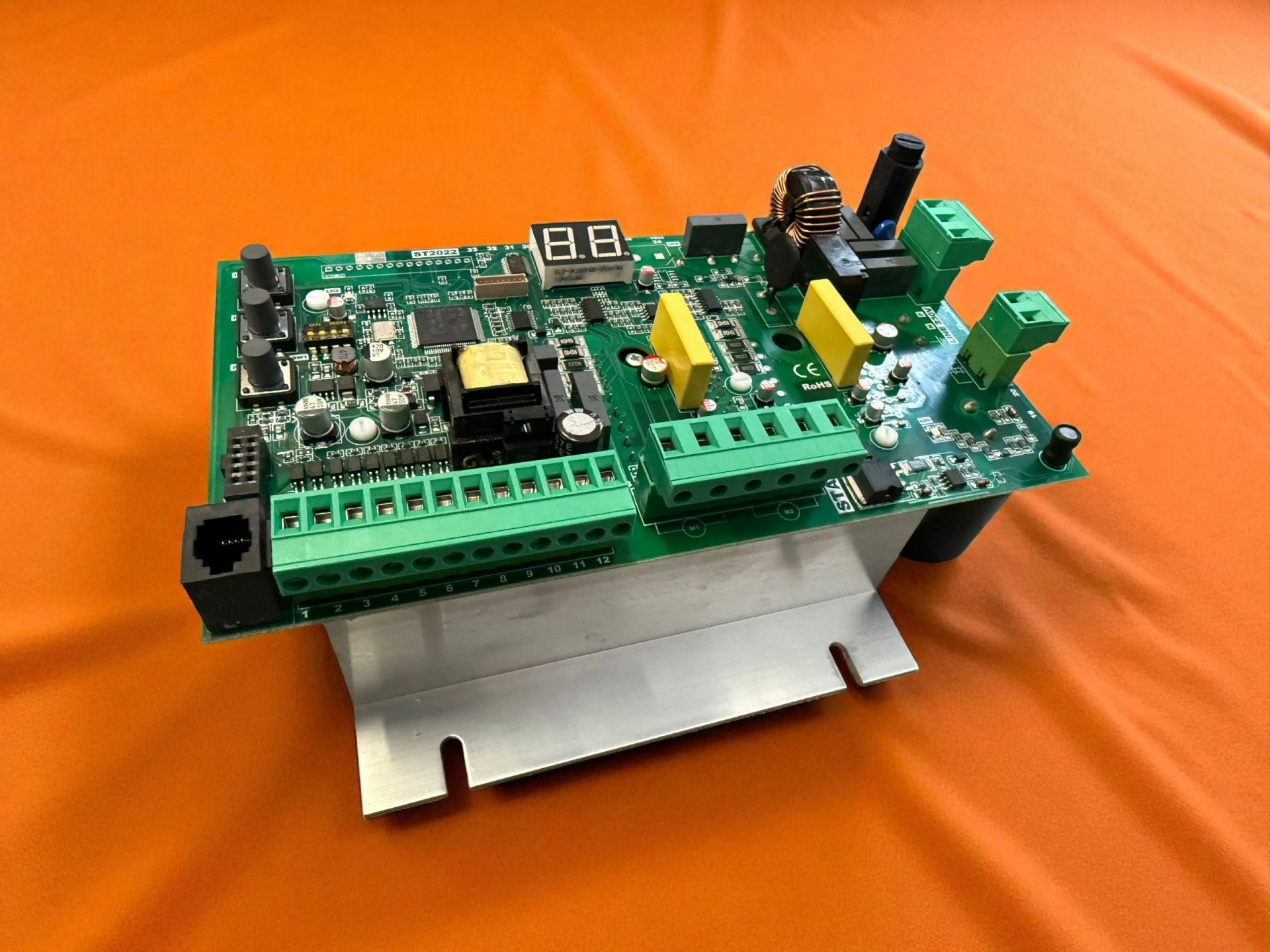

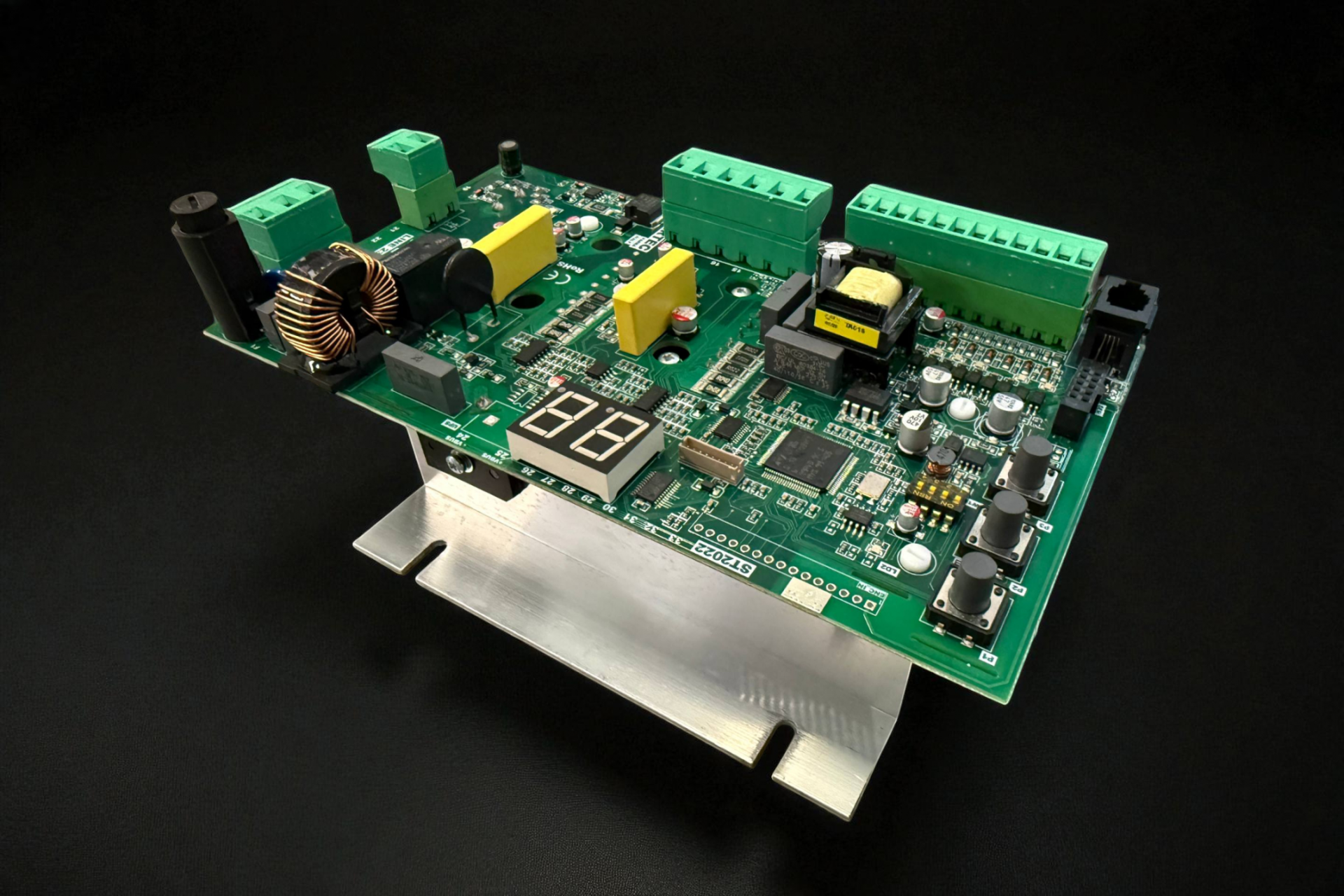

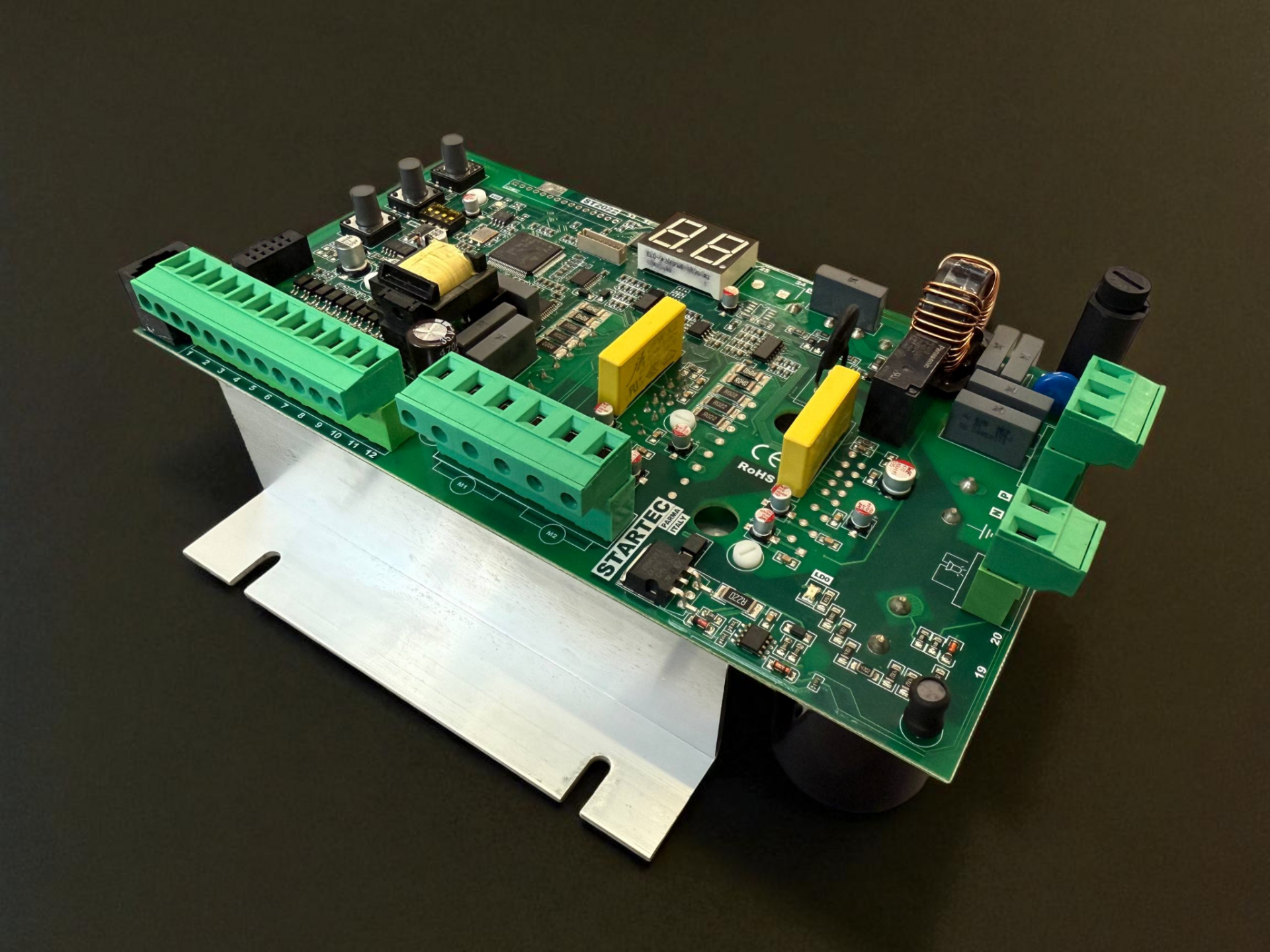

ST2022

2.2 kW INVERTER WITH INTEGRATED LOGIC FOR MANAGING 1 OR 2 MOTORS

For three-phase and single-phase motors.
Designed for industrial doors and gates, it can also be used in a variety of other applications due to its high operational flexibility, such as:
- Destratifiers;
- Refrigerated doors;
- Sliding gates and many more.
It is also compatible with Kostal absolute encoders or other types of encoders, thanks to the integrated RS485 connection.

Technical features

Power supply voltage: 230 V / 110 V 50 / 60 Hz
Motor power supply: 230 V delta / single-phase / three-phase
Max motor power: 2 x 1.1 KW extendable upon request
Accessory power supply: 250 mA / 24 V - 500 mA / 12 V
Terminal for RS485 communication
High reliability amperometric
Frequency variation of motors during opening and closing (speed increase)
Motor control frequency (from 5 to 100 Hz)
Possibility to use Apps and Cloud with the addition of a Wi-Fi radio
Selectable programs: automatic, semi-automatic and presence of operator

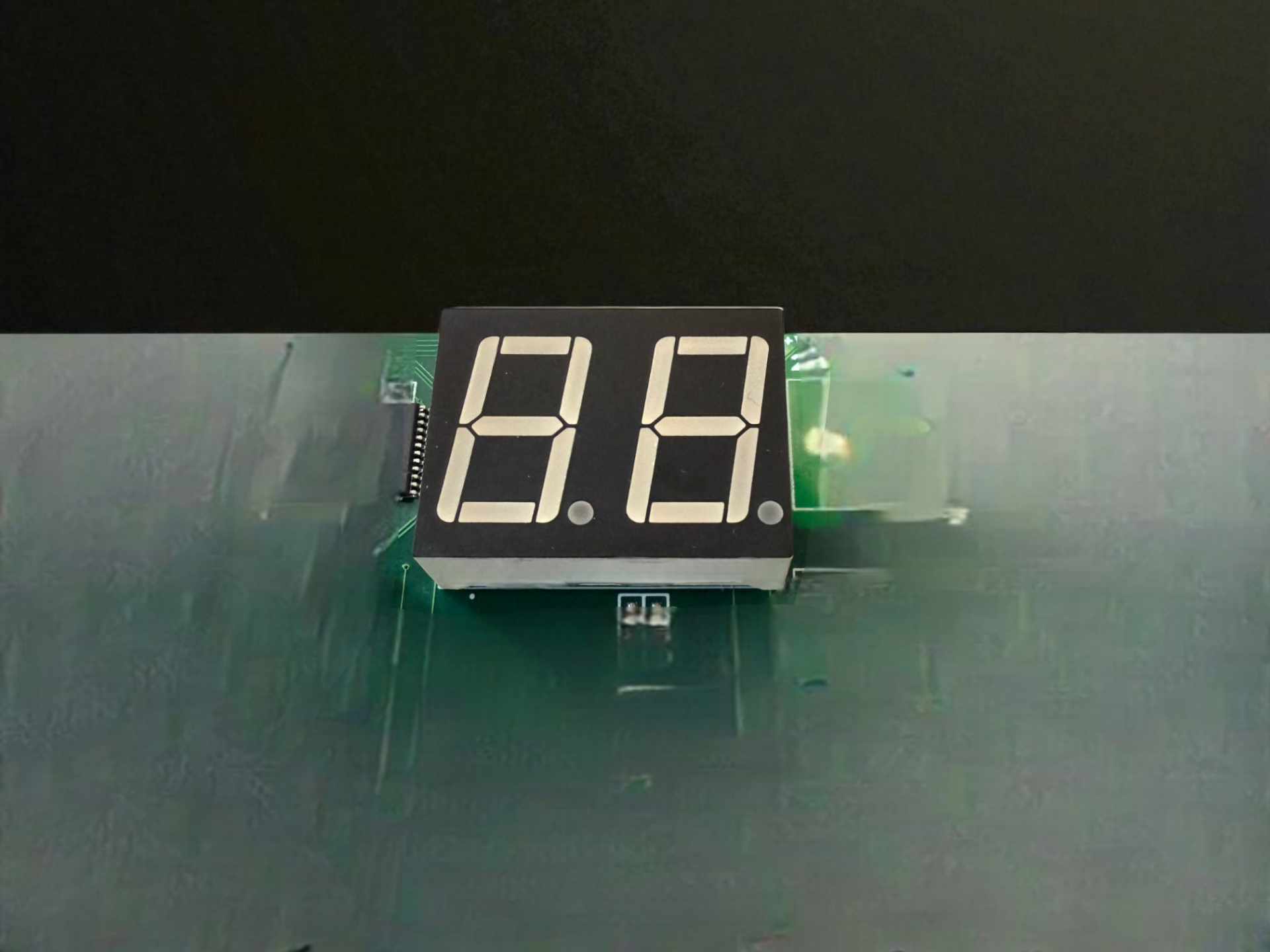

Intuitive interface: display menu for viewing the status of inputs and assigning functions
UPS compatibility: provision for optional UPS card, allowing emergency operation in the absence of mains voltage
Advanced programming: interface with handheld STD-2007 for programming, diagnostics, and firmware updates via web
